The Unifyia User Client v2.2.2 is a Linux (Ubuntu) service application that enables interaction with different types of card readers to perform operations on connected identity devices. Acting as an intermediary service, it links the Unifyia platform with the corresponding card readers, allowing for the execution of card-related actions. The Unifyia User Client specifically supports interaction with PCSC Card Readers, including both contact and contactless types.

Prerequisites

For the device client to work in the Linux environment, you need to install PC/SC Lite Daemon and NSS-Tools.

PC/SC-Lite Daemon

PCSC-Lite Daemon which is an open-source implementation of the PC/SC standard. It is part of the global MUSCLE project (Movement for the Use of Smart Cards in a Linux Environment). PC/SC serves as the de facto standard for connecting personal computers with smart cards and smart card readers. Follow the below steps to install:

1. Open a terminal and type the below command.

   // To install PC/SC
   sudo apt install pcscd

   //To start pcscd
   sudo systemctl start pcscd && sudo systemctl enable pcscd

2. Follow the default installation process to install.
3. To uninstall the pcscd service, execute the below command:

   // To uninstall PC/SC
   sudo apt remove --purge pcscd

NSS-Tools

Network Security Services (NSS) is a collection of libraries created to facilitate the cross-platform development of security-enabled client and server applications. Applications developed using NSS can support various security standards, including SSL v2 and v3, TLS, PKCS #5, PKCS #7, PKCS #11, PKCS #12, S/MIME, X.509 v3 certificates, and more.

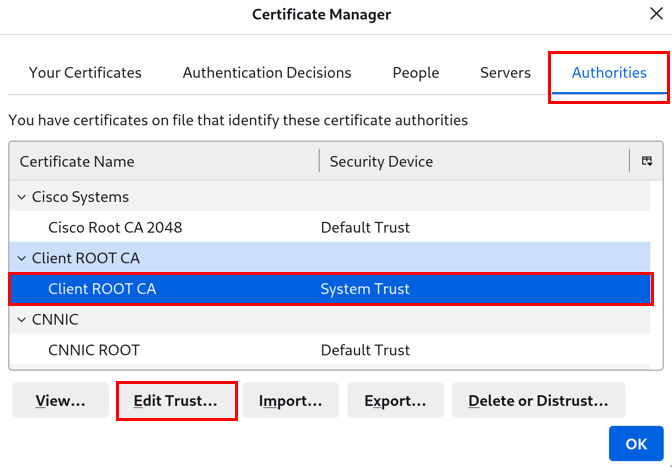

The NSS dependency (libnss3-tools) package is required to import self-signed localhost SSL certificate to the browser keystore. Follow the below steps:

1. Open a terminal and type the below command to install the NSS dependency.

   // To install NSS-Tools
   sudo apt install libnss3-tools

2. Provide the system password when prompted.
3. To uninstall, execute the below command:

   // To uninstall NSS-Tools and libraries
   sudo apt remove --purge libnss3-tools

Install Client

This section will walk you through the process of installing the Client service meant for users on Linux. On your local machine, download and extract the Client application that was shared with you. Follow the installation instructions for your operating system.

PC/SC Driver for Arculus AuthentiKey

Ubuntu systems do not automatically detect Arculus AuthentiKey devices. To enable detection, you must install the latest PC/SC drivers for USB CCID (Chip/Smart Card Interface Devices) smart card readers. This driver package is required to facilitate communication with CCID smart card readers via the PC/SC Lite resource manager (pcscd). Follow the steps below to download and install the latest libccid driver, which will allow your system to recognize Arculus AuthentiKey devices.

1. Open a terminal and run the below command to check your system architecture:

   //To check system architecture
   dpkg --print-architecture

2. You'll get the output as either amd64 (for 64-bit systems) or i386 (for 32-bit systems)
3. Visit the Official libccid package repository and scroll down to end of the page to view the latest packages. Download the latest version of the libccid package (.deb file) matching your system architecture (64 or 32-bit system). For example:
   1. For 32-bit systems: libccid_1.6.2-1_i386.deb
   2. For 64-bit systems: libccid_1.6.2-1_amd64.deb
4. Navigate to the folder where you downloaded the package and run the below command to install the driver. Ensure to replace <filename> in the below command with the exact filename that you have downloaded. For example, libccid_1.6.2-1_i386.

   //To install the libccid driver
   sudo dpkg -i <filename>.deb

5. If dpkg reports missing dependencies, run the below command to fix them:

   //To fix the missing dependencies
   sudo apt-get install -f

6. Ensure to restart the Smart Card Daemon (pcscd) after installing libccid driver. To restart the pcscd service, run the below command:

   //To restart the pcscd service
   sudo systemctl restart pcscd

Uninstall the PC/SC (libccid) Driver

1. To uninstall and remove only the driver, run the below command:

   //To uninstall and remove only the driver
   sudo apt remove libccid

2. To uninstall and remove the drivers along with the config files, run the below command:

   //To uninstall and remove the driver along with the config files
   sudo apt purge libccid

3. To verify if the uninstallation is complete, run the below command. If no output appears, the driver has been successfully removed.

   //Verify if uninstallation is successful
   dpkg -l | grep libccid

4. Ensure to restart the Smart Card Daemon (pcscd service) after removing libccid driver. To restart the pcscd service, run the below command:

   //To restart the pcscd service
   sudo systemctl restart pcscd

Stop and Restart Service

If the Unifyia platform is unable to detect the client service, then try to stop and restart the service. To stop and restart the service manually, open a terminal and run the following commands. Provide the system password when prompted.

//To stop the service
 systemctl stop DeviceClient.service

// To start the service
systemctl start DeviceClient.service

Uninstall Client

Open a terminal and run the following command to uninstall the Client application on a Linux machine.

// To uninstall the client service
sudo dpkg -r unifyiauserclient

Troubleshooting

This section will help you troubleshoot common service issues. Simply click on the problem to find steps for resolving it.
